Drum Scale Package #
TS2.5-33-DS-D
2,500 lb capacity industrial-duty floor scale, complete with weighing deck, digital indicator and all required cables and cords. Outdoor rated. Factory calibrated. Ships ready to connect and use.
Click on the tabs below for full details and specifications.
|
Industrial-duty Weighing DeckFeatures include diamond plate top deck, self-leveling, shock absorbing feet and mild steel junction box.

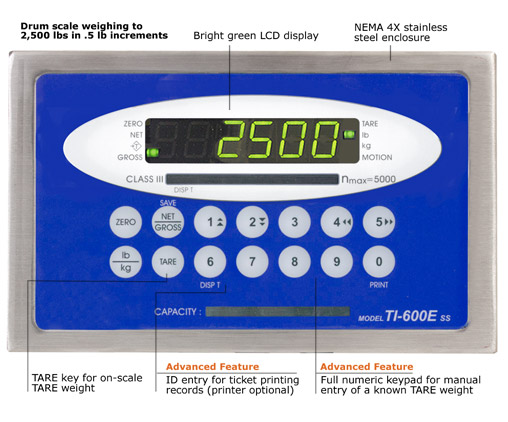

Full-feature Digital Indicator
The TI-600ESS is a rugged, NTEP approved digital indicator featuring keyboard tare. Housed in a stainless steel enclosure, the TI-600ESS comes with a bright 0.6" LED display and full duplex RS-232.
|
|
- Features
- Specifications
- Applications
- Accessories
|
• Quick Easy Setup
• High Accuracy
• Heavy Duty Steel Construction
• Diamond Steel Deck Plate
• Durable Two-Part Epoxy Paint Finish
• Height Adjustable Precision Leveling Feet
• Top Access to Leveling Feet for Easy Adjustment
• Side Access Junction Box
• 15' Interface Cable for Hostile Environments
|
|
Weighing Base
|
Indicator Model TI-600ESS
|
|
• Overall Dimensions:
49" (L) x 42" (W) x 3.25" (H)
• Platform Size:
36" (L) x 36" (W) x 1.7" (H)
• Integrated 10" 36" Ramp
• Capacity: 2,500 lb x 0.5 lb
• Four Premium Alloy Steel Nickel
Plated Loadcells
• Loadcells are Watertight for Wet
Environments
• Built in Overload Protection
• NEMA 4x Watertight Junction Box
|
• NEMA 4x Watertight Stainless Steel
Construction
• NTEP Approved, Legal For Trade
• Keyboard Tare Entry
• Full Duplex RS-232C Serial Port -
Demand or Continuous
• Tilt Adjustable Wall or Desk Mount
Stand
• Full Front Panel Configuration
• Display: 0.6", 6 Digit LED, Green
• Keyboard Functions: Units, Zero, Tare,
Net/Gross, Print, Display Tare, 0-9
• Annunciators: Gross, Net, kg, lb,
Center of Zero, Motion, Entered
Tare, Negative, Tare
• Power Requirements:
110/220 VAC, 50/60 Hz
|
• Drum and Barrel Weighing
• Warehouse Shipping & Receiving
• Container Weighing
• Pallet & Skid Weighing
• Gaylord Weighing
• Many other Industrial Applications
|
|
|
|
DESCRIPTION
Ramps allow easy access to the scale, eliminating the need to lift heavy loads onto the platform. They are used to load material onto the scale with hand trucks, pallet jacks and wheeled carts of many types.
|
|
|
DESCRIPTION
Protect the scale and your investment by installing side guards on the sides of the scale that do not have ramps. The angled guards deflect forces away from the scale platform, which prevents damage to any critical components.
|
|
|
DESCRIPTION
Protect the scale and your investment by installing side guards on the sides of the scale that do not have ramps. The angled guards deflect forces away from the scale platform, which prevents damage to any critical components.
|
|
|
FEATURES
• Thermal Dot Line Printing
• Prints on Adhesive Labels or Thermal
Paper Roll
• High Speed
• High Reliability
• Small Footprint
• Easy Paper Loading
• Spill Proof Design
• 9v Power Supply
SPECIFICATIONS
• Thermal Printing
• Prints 22mm per second
• Tear Bar
• Standard Paper Roll Size 2.24" x 118"
• Standard Label Size 2" x 2")
• Dimensions (In mm):
120 (W) x 170 (D) x 90 (H)
• RS-232 Serial Interface
|
|
|
FEATURES
• High Speed
• High Reliability
• Small Footprint
• Easy Paper and Ribbon Loading
• Recessed Cable Connections
• Spill Proof Design
• Internal Power Supply
• 90 Day Warranty
SPECIFICATIONS
• Impact Dot Matrix Printing
• Prints 4.2 Lines Per Second
(40 Columns)
• Tear Bar
• Paper Width: Standard 76 mm
• Printer Ribbon, Black
(1,200,000 Characters)
• Dimensions (In mm):
140 (W) x 225 (D) x 163 (H)
• RS-232 Serial Interface
|
Indicator Stand
Indicator sold separately
$100.00
Close Window
|
DESCRIPTION
Indicator stands are available to provide a convenient and flexible option for mounting the digital display. The base plate has 4 holes so that it can be anchored to the floor.
60” Tall Column
|
