With a capacity of 20,000 pounds and a ½ inch steel deck plate, this platform scale from Floor Scales Direct is ideal for aircraft container weighing, warehouse operations and so much more. And, this model is made for ease of use with its three inch height offering a low profile and wrap around ramps. It also has an indicator mounting stand in the list of features you’ll appreciate.
Learn more about this platform scale and all its application possibilities by reviewing the tabs below. You can also view more images or contact us to learn more and discuss your needs in greater detail.
Read More
|
|
TS20-1010 Platform Scale
- Features
- Specifications
- Applications
- Accessories
|
• Super Low Profile, Only 3" Tall
• Engineered For Weighing Air Cargo Containers
• 1/2" Steel Deck Plate
• Wrap Around Ramps
• Two Piece Deck Design
• Durable Two-Part Epoxy Paint Finish
• Stainless Steel Side Access Junction Box
• 15' Interface Cable for Hostile Environments
• Indicator Mounting Stand
|
|
Platform
|

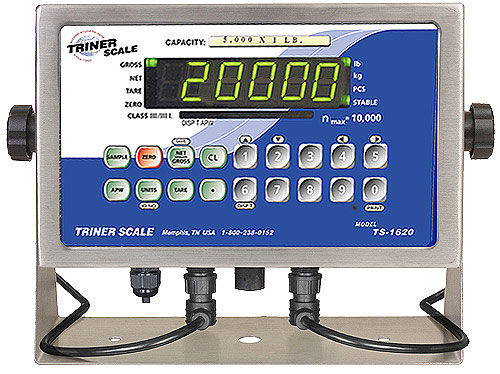

Indicator Model TS-1620
|
|
• Platform Size:
10' (L) x 10' (W) x 3" (H)
• Eight (8) Wrap Around Ramps:
15' (L) x 60" (W) x 3" (H)
• Capacity: 20,000 lb x 10 lb
• Six Premium Alloy Steel Nickel Plated
Loadcells
• Loadcells are Watertight for Wet
Environments IP67
• Loadcell Capacity is 2 times the Scale
Capacity
• Built in Overload Protection
• NEMA 4x Stainless Steel Watertight
Junction Box
|
• NEMA 4x Watertight Stainless Steel
Construction
• Bright Easy-To-Read LED Display
• Easy Operation with Full Numeric
Keypad
• LB / KG Conversion
• Key-in Tare Function
• Built In RS-232 Communications Port
• Tilt Adjustable Wall or Desk Mount
Stand
• Parts Counting Function
• 120-240 VAC Power
|
• Aircraft Container Weighing
• Warehouse Shipping & Receiving
• Container Weighing
• Pallet & Skid Weighing
• Drum Weighing
• Gaylord Weighing
• Many other Industrial Applications
|
|
|
|
FEATURES
• Thermal Dot Line Printing
• Prints on Adhesive Labels or Thermal
Paper Roll
• High Speed
• High Reliability
• Small Footprint
• Easy Paper Loading
• Spill Proof Design
• 9v Power Supply
SPECIFICATIONS
• Thermal Printing
• Prints 22mm per second
• Tear Bar
• Standard Paper Roll Size 2.24" x 118"
• Standard Label Size 2" x 2")
• Dimensions (In mm):
120 (W) x 170 (D) x 90 (H)
• RS-232 Serial Interface
|
|
|
FEATURES
• High Speed
• High Reliability
• Small Footprint
• Easy Paper and Ribbon Loading
• Recessed Cable Connections
• Spill Proof Design
• Internal Power Supply
• 90 Day Warranty
SPECIFICATIONS
• Impact Dot Matrix Printing
• Prints 4.2 Lines Per Second
(40 Columns)
• Tear Bar
• Paper Width: Standard 76 mm
• Printer Ribbon, Black
(1,200,000 Characters)
• Dimensions (In mm):
140 (W) x 225 (D) x 163 (H)
• RS-232 Serial Interface
|
