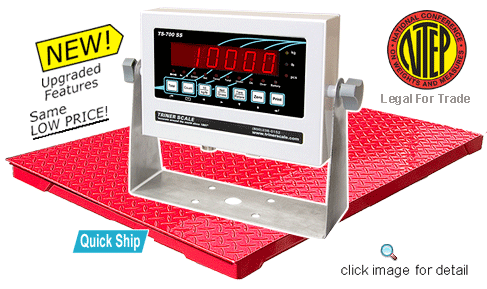

Floor Scale Package # TSM10-48-A
10,000 lb capacity industrial-duty floor scale, complete with weighing deck, digital indicator and all required cables and cords. Outdoor rated. Factory calibrated. Ships ready to connect and use.
Click on the tabs below for full details and specifications.
|
Industrial-duty Weighing Deck
NTEP certified. Features include diamond plate top deck, self-leveling, shock absorbing feet and mild steel junction box.
Full-feature Digital Indicator
NTEP certified. Features include high visibility red LED digits, advanced functions and basic functions. Includes AC adapter. Runs on standard 110 VAC power.
|
|
- Features
- Specifications
- Applications
- Options
- Accessories
|
• Quick Easy Setup
• High Accuracy
• Heavy Duty Steel Construction
• Diamond Steel Deck Plate
• Durable Two-Part Epoxy Paint Finish
• Height Adjustable Precision Ball & Cup Leveling Feet
• Top Access to Leveling Feet for Easy Adjustment
• Top Access Junction Box
• 15' Interface Cable for Hostile Environments
|
|
Weighing Base
|
Indicator Model TS-700MS
|
|
• Platform Size: 4' (L) x 8' (W) x 4.5" (H)
• Capacity: 10,000 lb x 2 lb
• Legal For Trade, Class III, 5000
Divisions
• Four Premium NTEP Approved Alloy
Steel Nickel Plated Loadcells
• Loadcells are Watertight for Wet
Environments
• Loadcell Capacity is 2 times the Scale
Capacity
• Built in Overload Protection
• NEMA 4x Watertight Junction Box
|
• Bright Easy-To-Read LED Display
• Easy 8 Button Operation
• NTEP Approved, Legal For Trade
• Tare Function
• Hold Feature with Data and Peak Hold
• RS-232 Port For Optional Printer
• Tilt Adjustable Wall or Desk Mount
Stand
• LB / KG Conversion
• 120 VAC Power
• Check Weighing
• Weight Accumulation
|
• Warehouse Shipping & Receiving
• Container Weighing
• Pallet & Skid Weighing
• Drum Weighing
• Gaylord Weighing
• Many other Industrial Applications
|
|
|
|
DESCRIPTION
Ramps allow easy access to the scale, eliminating the need to lift heavy loads onto the platform. They are used to load material onto the scale with hand trucks, pallet jacks and wheeled carts of many types.
|
|
|
DESCRIPTION
Protect the scale and your investment by installing side guards on the sides of the scale that do not have ramps. The angled guards deflect forces away from the scale platform, which prevents damage to any critical components.
|
|
|
DESCRIPTION
Protect the scale and your investment by installing side guards on the sides of the scale that do not have ramps. The angled guards deflect forces away from the scale platform, which prevents damage to any critical components.
|
|
|
Features
• Weather-tight quick connector enables easy
connecting and disconnecting of digital
indicator to/from weighing base.
Specifications
• 12 inch cable from indicator with high quality
Amphenol female connector.
• 15 foot cable from weighing base with high
quality Ampenol male connector.
|
|
|
FEATURES
• Thermal Dot Line Printing
• Prints on Adhesive Labels or Thermal
Paper Roll
• High Speed
• High Reliability
• Small Footprint
• Easy Paper Loading
• Spill Proof Design
• 9v Power Supply
SPECIFICATIONS
• Thermal Printing
• Prints 22mm per second
• Tear Bar
• Standard Paper Roll Size 2.24" x 118"
• Standard Label Size 2" x 2")
• Dimensions (In mm):
120 (W) x 170 (D) x 90 (H)
• RS-232 Serial Interface
|
|
|
FEATURES
• High Speed
• High Reliability
• Small Footprint
• Easy Paper and Ribbon Loading
• Recessed Cable Connections
• Spill Proof Design
• Internal Power Supply
• 90 Day Warranty
SPECIFICATIONS
• Impact Dot Matrix Printing
• Prints 4.2 Lines Per Second
(40 Columns)
• Tear Bar
• Paper Width: Standard 76 mm
• Printer Ribbon, Black
(1,200,000 Characters)
• Dimensions (In mm):
140 (W) x 225 (D) x 163 (H)
• RS-232 Serial Interface
|
Indicator Stand
Indicator sold separately
$100.00
Close Window
|
DESCRIPTION
Indicator stands are available to provide a convenient and flexible option for mounting the digital display. The base plate has 4 holes so that it can be anchored to the floor.
60” Tall Column
|
|
|
FEATURES
• Simple to install, simple to use
• Perfect for logging weigh data from
scale to PC
• With a click of a button, instantly log
weigh data from scale
• Built in spreadsheet has seven
user-definable columns for adding
related information
• Record and save weigh data without
the need for complicated, high-priced
data-recording digital indicator
SPECIFICATIONS
• Records and logs: Date, Time,
Gross Weight, Tare Weight, Net Weight,
Unit (lb/kg)
• Log files are easily imported to Excel
for full spreadsheet functionality
• INCLUDES: CD, User’s Guide, and
Connecting Cable
|
